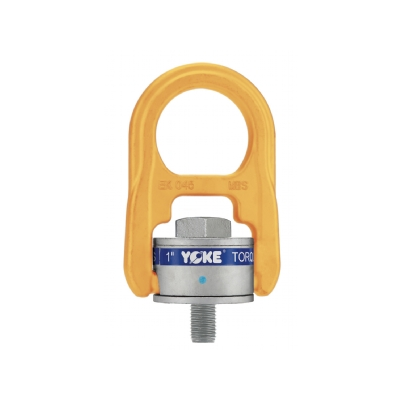

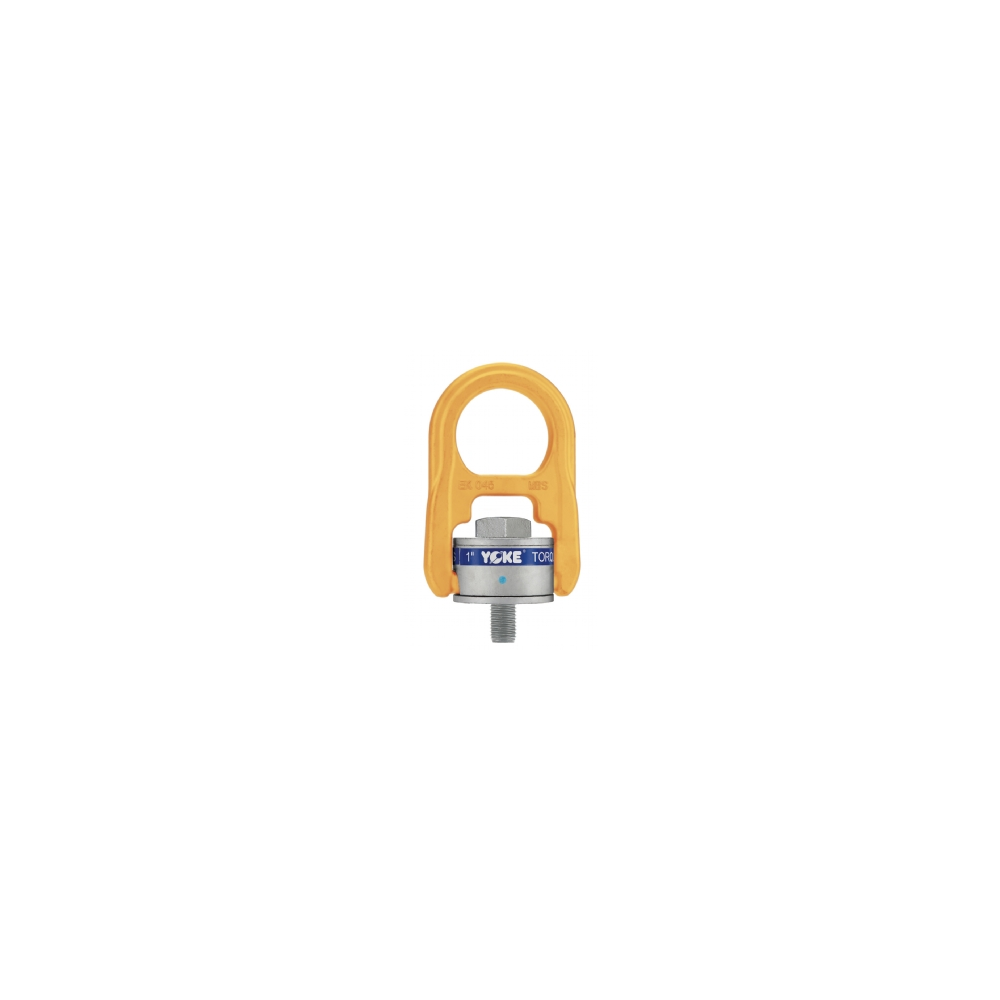

Lifting Point 8-204 UNC

Lifting Point 8-204

Lifting Point 8-204

Lifting Point 8-204

E-mail View PDF

Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
Manufactured and tested in accordance with EN1677-1.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolt are UNC thread (ASME/ ANSI B18.31M).
Pr

Show more

Quantity:

Show all variants

Part code:

Filters & subcategories

Show results

Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
Manufactured and tested in accordance with EN1677-1.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolt are UNC thread (ASME/ ANSI B18.31M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly, just a tapped hole is required.

Material: Alloy steel, quenched and tempered.
Marking: According to standard
Standard: EN 1677-1

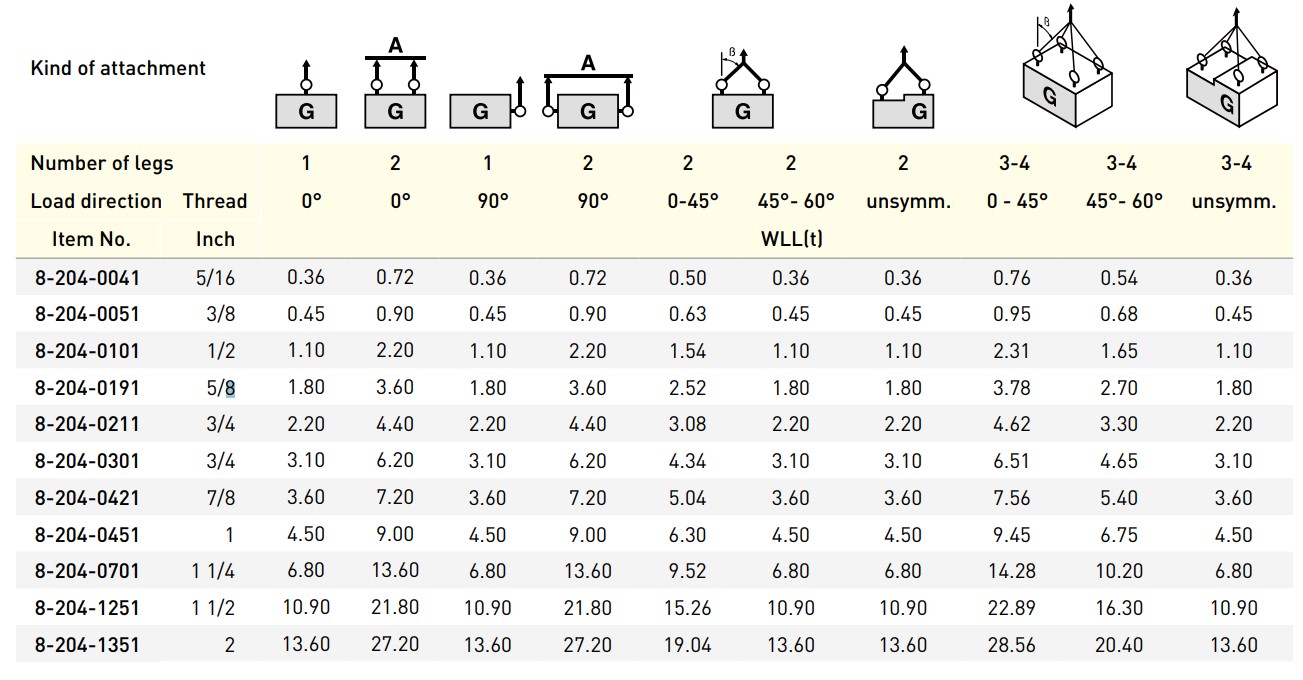

Load table lifting point 8-204
