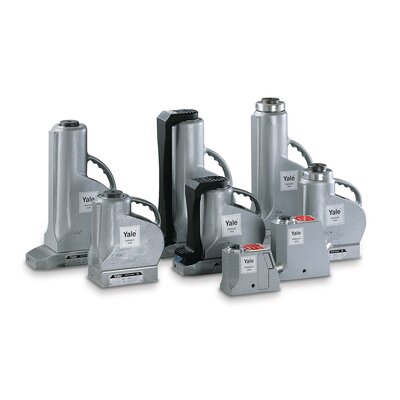

Aluminium jacks combine lightweight with high lifting capacity. The use of high tensile aluminium alloy allows lifting capacities of up to 100 tonne resulting in a very favourable 1.8 tonne lifting capacity per 1kg weight ratio.
Jacks from 20 tons are available with a lifting claw. In this case the jacks are provided with an elongated base plate. The max. permissible working load of the lifting claws is
40% of the jack capacity.
Features:
- Extremely low weight.
- Strokes from 75 to 305mm.
- All jacks provided with an overload protection valve.
- Hardened alloy steel saddle and sensitive lowering valve which is activated by the operating lever.
- The 20 to 100 tons jacks can be operated vertically or with front face in horizontal position.
| Model | Capacity, t | Capacity of lifting claw max., t |
| AJH-620 C | 20 | 8 |
| AJH-1220 C | 20 | 8 |
| AJH-630 C | 30 | 12 |
| AJH-1230 C | 30 | 12 |
| AJH-660 C | 60 | 24 |
| AJH-1260 C | 30 | 24 |
